Wiring for Category 6 cable (UTP)

This article provides a detailed guide on the wiring procedures for Cat6 Unshielded Twisted Pair (UTP) cables, including essential tools, colour coding standards, and wiring diagrams. Whether you're a seasoned network technician or a DIY enthusiast, this tutorial will equip you with the necessary skills to create reliable and efficient Ethernet connections, ensuring you benefit from Cat6's superior speed and bandwidth capabilities.

Cat6 cables are pivotal in modern networking, facilitating data transfer rates of up to 10 Gbps. By the end of this article, you will not only grasp the importance of Cat 6 but also learn how to implement an effective installation process from start to finish.

TL:DR – This article outlines a comprehensive step-by-step process for wiring Cat6 UTP cables, highlighting the required tools, colour coding techniques, and troubleshooting measures for a successful networking experience.

The Importance of Cat6 UTP Cables

Cat6 UTP cables have emerged as a pivotal element in today’s data communications landscape. Unlike their predecessors, such as Cat5e, these cables are designed to handle higher frequencies and data rates, making them ideal for a variety of applications including office environments, data centres, and even residential networks. The importance of selecting the correct cable for specific networking needs cannot be overstated; doing so ensures smooth operations and optimal efficiency.

One of the key advantages of Cat6 cables resides in their ability to minimise interference, thanks to their twisted pair design. Each of the four pairs of wires is twisted at different rates, essentially cancelling out electromagnetic interference. This attribute not only enhances the cable's performance at higher speeds but also extends its operational distance, facilitating data transmissions over longer distances without degradation of signal quality.

Essential Tools for Wiring Cat6 Cables

Before embarking on the wiring process, it is crucial to gather the right tools to ensure a successful installation. A typical toolkit for wiring Cat6 cables includes a cable stripper, crimping tool, RJ45 connectors, and a cable tester. Optionally, having a multimeter can be beneficial for troubleshooting purposes.

The cable stripper is integral for safely removing the outer jacket of the Cat6 cable without damaging the internal wires. The crimping tool secures the RJ45 connectors to the cable, forming the necessary connection for your network. Meanwhile, the cable tester ensures that all connections are functional and correctly wired, providing peace of mind that your installation is free of fault.

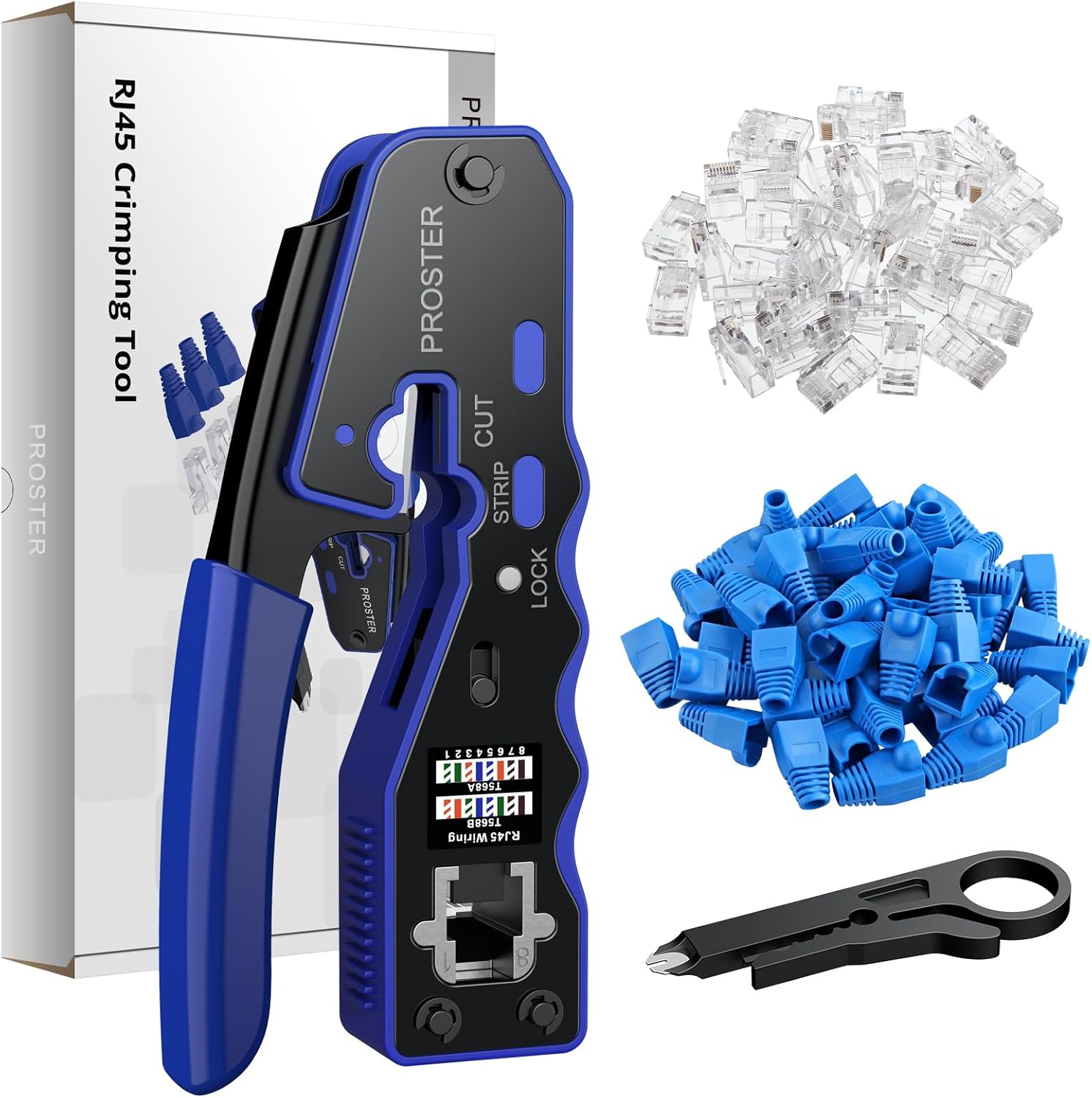

RJ45 Crimp Tool Set

3-in-1 RJ45 Crimping Tool Kit with 50 PCS CAT6 Pass Through Connectors 50 PCS RJ45 Cat6 Protection Covers RJ45 Pass Through Crimp Tool

• Suitable for Crimping RJ45 Connectors (8P8C)
• Easy to Handle
• Compact and Lightweight
• Lock Button

RJ45 Crimp Tool Set (Amazon) Amazon's Choice

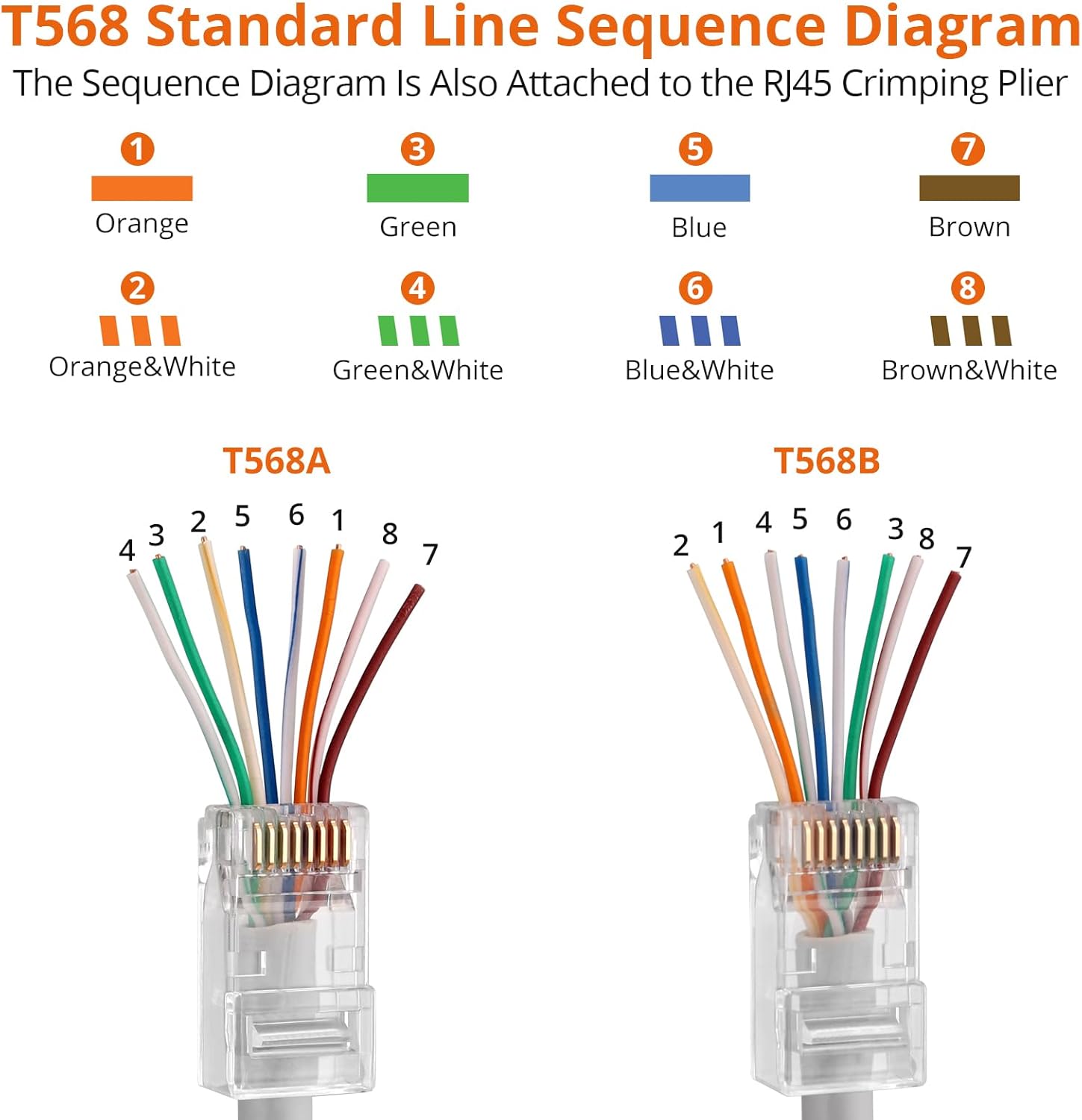

Understanding Wiring Standards: T568A and T568B

In order to wire Cat6 UTP cables effectively, it's important to understand the two primary wiring standards: T568A and T568B. Both standards dictate the colour order of the wires within the RJ45 connector but differ in their specific arrangements. Consistency is key; mixing the two standards can result in connectivity issues.

The T568A standard is often recommended for new installations and is compliant with the Telecommunications Industry Association (TIA) and Electronic Industries Alliance (EIA) guidelines. On the other hand, T568B is frequently used in existing networks and may be necessary for compatibility reasons. Regardless of which option you choose, maintaining uniformity throughout your project is crucial for troubleshooting and future maintenance.

Preparing the Cable: Stripping and Untwisting

Starting your wiring project involves preparing the Cat6 cable. Begin by cutting the cable to your desired length, ensuring you account for any bends or routing that will take place in the installation. Once you have your length, use a cable stripper to remove about an inch of the cable’s outer jacket. This reveals the four pairs of twisted wires inside.

Once the jacket has been stripped away, carefully untwist each of the wire pairs to prepare them for insertion into the RJ45 connector. It’s important to maintain the twists as far down the wire as possible to minimise interference. Following the untwisting, align the wires in accordance with the chosen wiring standard; for T568B, the order is white-orange, orange, white-green, blue, white-blue, green, white-brown, and brown.

Inserting Wires into the RJ45 Connector

After aligning the wires to comply with the wiring standard, the next step is to insert them into the RJ45 connector. This process requires precision and care, as incorrect wire placement can result in connectivity issues. Make sure the wires are fully pushed into the connector, with each wire seating correctly into its designated slot.

It's advisable to hold the RJ45 connector at an angle during insertion to prevent the inner pins from bending or breaking. Take your time to ensure each wire is aligned correctly with the cut slots. If done correctly, when you look at the cut end of the RJ45 connector, the wires should be visible and fit snugly into place.

Crimping the Connector

Once the wires are correctly inserted into the RJ45 connector, the next phase is crimping, which secures the wires to the connector. Utilising your crimping tool, apply firm and even pressure until you hear a click, indicating that the connection has been made. This action ensures that the metal contacts within the connector pierce through the insulation of the wires, securing a reliable connection.

It is critical to avoid excessive pressure to minimize the risk of damaging the connector or the wires. Once crimping is complete, give a gentle pull on the wires to ensure they are securely fastened. If any wires are loose, you may need to re-strip the connector and attempt the insertion and crimping again.

Testing Connectivity

The final step in the wiring process is to verify connectivity using a cable tester. A cable tester allows you to check for any miswirings, shorts, or breaks in the cable. The testing process typically involves connecting both ends of the cable to the tester, which emits signals to verify the continuity and correctness of each connection.

If the cable passes the test, all eight wires are correctly connected, ensuring a reliable networking environment. For added assurance, using a multimeter can be beneficial for in-depth diagnostics if you encounter issues. Regular testing is recommended, especially during significant changes or upgrades to network hardware.

Organising and Labeling Your Cables

Upon completing the wiring and testing phases, it’s essential to organise and label your cables effectively. This step not only improves the appearance of your networking setup but also facilitates easy identification during maintenance or troubleshooting operations. Using cable ties or clips, secure the cables to prevent tangling and excessive bending that may cause damage.

Label each cable according to its purpose or connection points, providing quick reference in the future. An organised network structure will greatly simplify maintenance tasks and enhance overall network management, ultimately leading to improved reliability in your cabling system.

Benefits of Wiring Your Own Cat6 Cables

Wiring your own Cat6 cables can be a rewarding undertaking, offering various benefits over purchasing pre-made cables. Custom wiring allows for precise lengths tailored to your specific setup, eliminating excess cable clutter and maintaining a tidy workspace. Furthermore, for those with technical skills, it represents a cost-saving opportunity compared to commercial solutions.

Additionally, the self-wiring process provides invaluable insights into networking principles and hands-on experience. Understanding the components and functioning of your network can empower you to troubleshoot problems more effectively in the long term, fostering a stronger skillset for future projects.

Staying Up to Date with Network Standards

As network technology evolves, keeping abreast of changes to cable standards and regulations is paramount. It is important to leverage the correct elements when upgrading your network infrastructure—whether it be connectors, cables, or standards. Always ensure that the materials you use meet established guidelines, such as TIA/EIA standards, to secure optimal performance.

Moreover, advancements in technology, such as the introduction of CAT6A and CAT7 cables, continue to increase the capabilities and performance of networking systems. Investing in quality materials will not only guarantee high performance today but also provide compatibility with emerging technologies, supporting future growth and scalability for your networking needs.

Conclusion: The Path to Networking Success

In conclusion, wiring Cat6 UTP cables is an essential skill for ensuring fast, reliable connections within any network environment. From preparing your installation toolkit and understanding wiring standards to testing and organising your cables, every step is vital to achieving a successful outcome. Remember, meticulous attention to detail yields the best results in your wiring project.

By mastering the procedures outlined in this guide, you not only enhance your networking capabilities but also pave the way for a more robust and efficient communication infrastructure. Embrace the benefits of Cat6 Ethernet and take the initiative to wire your own cables for an optimised networking experience.
